Overhaul Kits for Cummins®X15 Engines
| Engine | CPL: 4342 & 4343 |
|---|---|
| EPA | EPA 2017 |
| Control Module | CM2350 |
| Bore | 137mm |
| Stroke | 169mm |
| Cylinder configuration | 6 Cylinder, 4 Stroke Diesel |
| Displacement | 15L |
| Aspiration | Turbocharged |
Also Available for Cummins® X15 Engines
We also offer a growing range of parts for the Cummins® X15 engine, giving you more options from a single reliable source. KMP delivers where others fall short, with some of the broadest engine coverage in the industry. Our parts are trusted by professionals in more than 150 countries who rely on consistent quality and support.
- Bearings
- Belt Tensioner
- Bush Camshaft
- Bush, Rocker Arm
- Camshaft
- Capscrew
- Conrod
- Crankshaft
- Crankshaft Seal
- Crosshead Valve
- Cylinder Head Gasket
- Fuel Transfer Pump
- Gaskets & Gasket Kits
- Liners & Seals
- Oil Pumps
- Oil Filters
- Pistons
- Ring Sets
- O-Ring
- Thermostat
- Valve Guide
- Valve Inlet
- Valve Spring

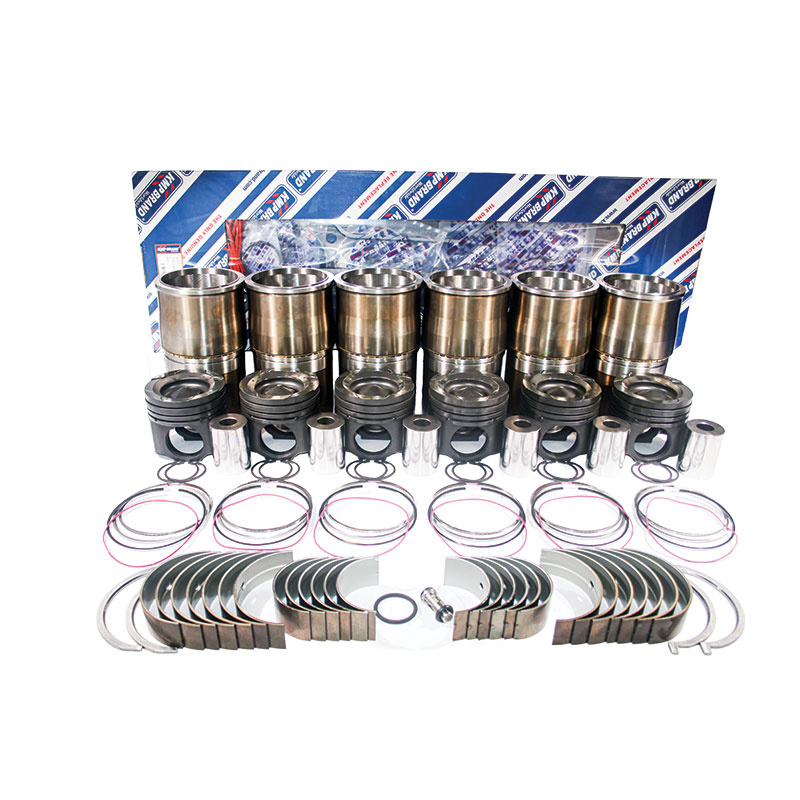

Part Number: KM1387
CYLINDER KIT – CPL: 4343
The Cummins® X15 Engine
The Cummins® X15 is a heavy-duty, 14.9-litre inline six-cylinder diesel engine with a turbocharged, aftercooled design, a single cylinder head, and four valves per cylinder, built to handle some of the toughest jobs in commercial transport and off-highway equipment. On-highway ratings span three series to suit different priorities: the Efficiency Series produces 400 to 500 hp and 1,450 to 1,850 lb-ft of torque, the Performance Series delivers 485 to 565 hp and 1,650 to 2,050 lb-ft of torque, and the Productivity Series tops out at 430 to 605 hp and 1,650 to 2,050 lb-ft of torque. Across the range, peak torque is available as low as 1,000 rpm, giving strong pulling power for heavy loads and steep grades.
The X15 is best known as the powerplant behind Class 8 trucks, but its reach extends well beyond the highway. An off-highway version of the engine is also widely specified for excavators, wheel loaders, articulated dump trucks, mining trucks, road milling machines and cranes, and a marine variant supports both propulsion and auxiliary power roles in commercial and recreational vessels. This breadth of application, combined with features like the high-pressure XPI fuel system, VGT turbocharger, and long service intervals, has made the X15 one of the most trusted engines in its class for operators who need durability and low running costs over millions of miles or hours.
With so many trucks, machines, and vessels depending on the X15 to keep working, having a dependable source of quality replacement parts is key to avoiding costly downtime. Our catalogue covers a full range of components for the X15, from crankshafts and cylinder kits to fuel systems, cooling systems, turbochargers, and electrical parts, helping you keep your X15-powered equipment on the job.
Frequently Asked Questions
What’s included in the KMP X15 overhaul kit? Pistons, rings, liners, bearings, and a full in-frame gasket kit – everything needed for an in-frame rebuild of CPL 4342 or 4343.
How do I know if my engine is CPL 4342 or 4343? Check your engine’s CPL (Control Parts List) number on the engine dataplate, or confirm with your Cummins® service records — the two CPLs use different piston/ring part numbers.
Do KMP parts fit factory Cummins X15 engines? Yes – KMP parts are manufactured to OEM dimensions and tolerances for accurate fitment. They’re aftermarket replacement parts, not Cummins® branded parts.
Can I order individual parts instead of the full kit? Yes – see the “Also Available” section above, or use the Engine Kit Quote tool to build a custom order.
